Optical testing system main unit

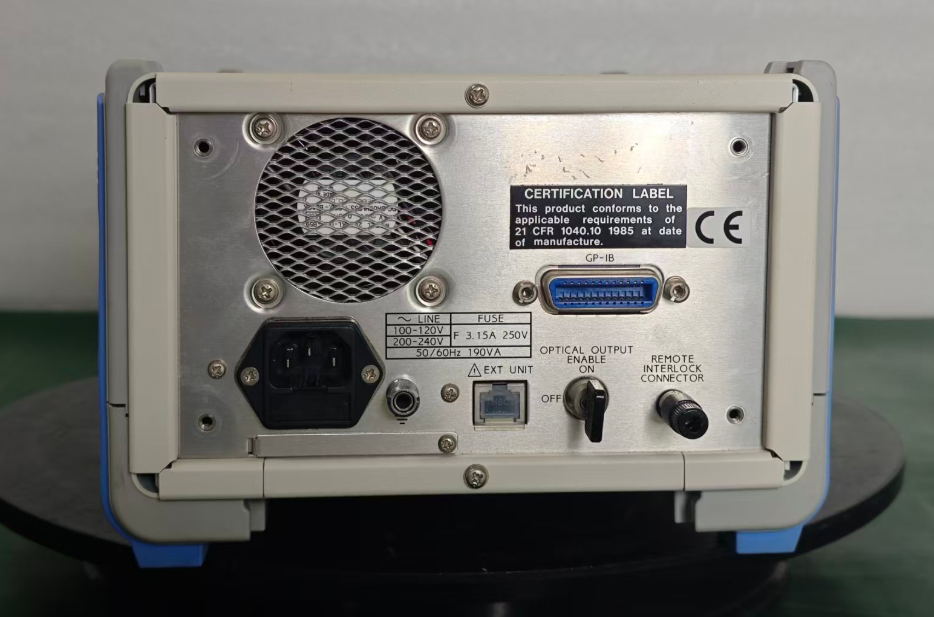

Key Features of the Ando AQ8203 Modular & Flexible Configuration: Equipped with 3 standard module slots, compatible with all AQ82xx series function modules (e.g., light sources, optical power meters, optical attenuators), allowing users to quickly build customized test systems based on specific needs. Strong Expandability: Supports connection to the AQ8202 Expander Frame, which breaks through the slot limitation of a single mainframe and enables centralized control of up to 43 modules, suitable for multi-channel and complex link testing scenarios. Standardized Interface: Equipped with a GP-IB (IEEE-488.2 compatible) interface for communication with external devices and control systems. Compact & Portable Design: Half-size frame form factor with a 19-inch rack-mountable design, making it space-efficient and suitable for flexible system configurations. Wide Application: Designed for specification evaluation of WDM-related devices such as MUX/DEMUX, AWG, and EDFA, as well as for research, development, and testing in optical communications. Operating Environment: Power supply: AC 100 to 120/200 to 240 V, 50/60 Hz, 190 VA or less. Operating temperature: +5°C to +40°C.
