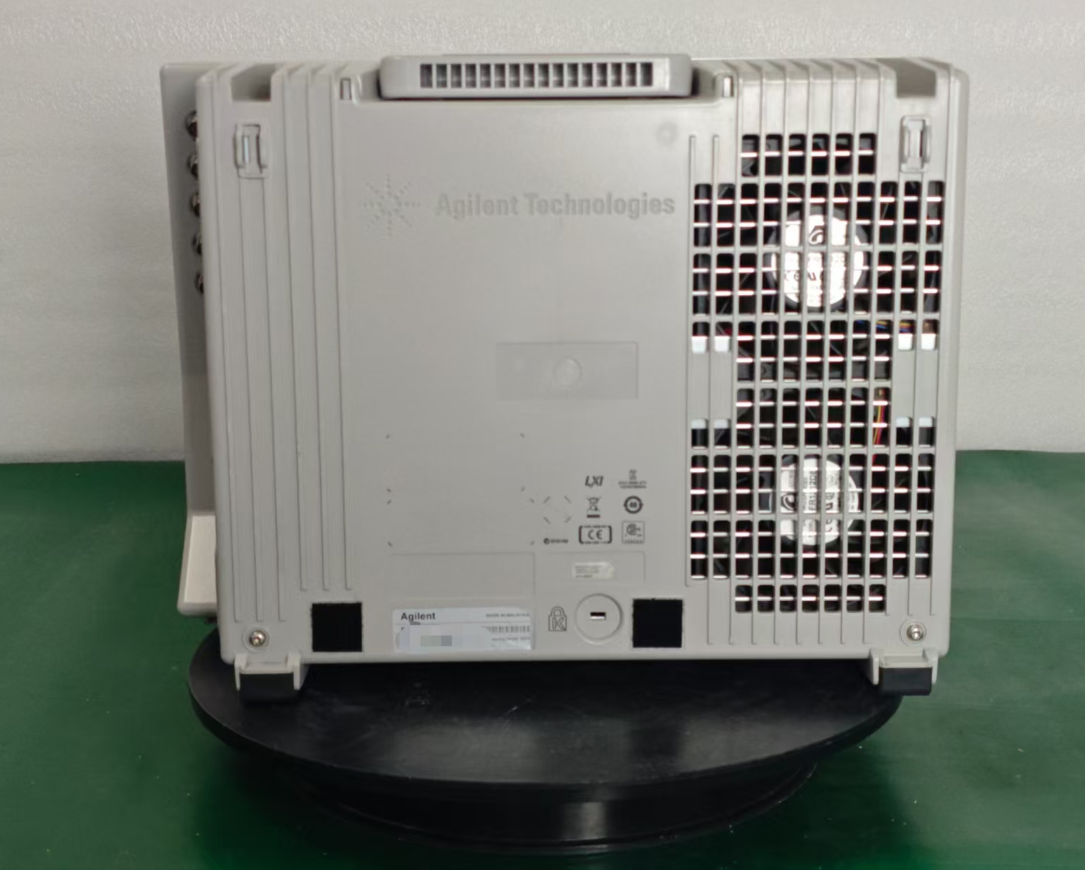

oscilloscope

General Specifications Bandwidth: 1 GHz Analog Channels: 4 Maximum Sample Rate: 20 GSa/s (10 GSa/s in 4-channel mode) Standard Memory: 20 Mpts per channel Upgradable Memory: Up to 1 Gpts per channel Waveform Capture Rate: Up to 250,000 waveforms/s Display & Form Factor Display: Large 15-inch XGA LCD display Touchscreen: Standard touchscreen for mouse-free operation Depth: Compact 9 inches (23 cm) deep Weight: Lightweight at only 26 lbs (11.8 kg) Whisper-quiet operation 3-in-1 Instrument Capability Oscilloscope: High-performance scope channels with responsive deep memory for precise signal representation Logic Analyzer: Add 16 integrated digital channels (with MSO upgrade) for critical data and timing analysis Protocol Analyzer: Integrated protocol viewers with multi-tab viewing for I²C, SPI, RS-232, CAN, LIN, FlexRay, JTAG, USB, PCIe, SATA, and more Advanced Triggering & Measurements Advanced Triggering: Full range of advanced triggers with intuitive dialog boxes and descriptive graphics Drag-and-Drop Measurements: Drag measurement icons from the measurement bar and drop them directly onto the waveform cycle Built-in Measurements: Comprehensive set of built-in measurements with statistics Math Functions: Includes FFT and segmented memory Input & Connectivity Input Impedance: 50 Ω ± 2.5% and 1 MΩ ± 1% (11 pF typical) Comprehensive Built-in Information System: Task-oriented setup guide with step-by-step instructions Software & Analysis Options Serial Protocol Applications: I²C, SPI, RS-232, CAN, LIN, FlexRay, JTAG, USB 2.0 Serial Physical Layer Applications: USB 2.0, DDR 1/2/3, Ethernet Jitter Analysis: EZJIT and EZJIT+ applications MATLAB Software: Available for custom measurement and analysis routines Debug and Compliance Packages: Customizable toolset Accessories Included (Standard) Four N2873A 500 MHz passive probes Probe accessory pouch Keysight I/O libraries suite Localized power cord Front panel cover, keyboard, mouse, and stylus User guide and programmer's guide (on hard drive) Physical Dimensions Dimensions (W x H x D): 424 x 318 x 226 mm Rackmount Compatible: 8U high, 19-inch wide (with Option ICM)
