arbitrary waveform generator

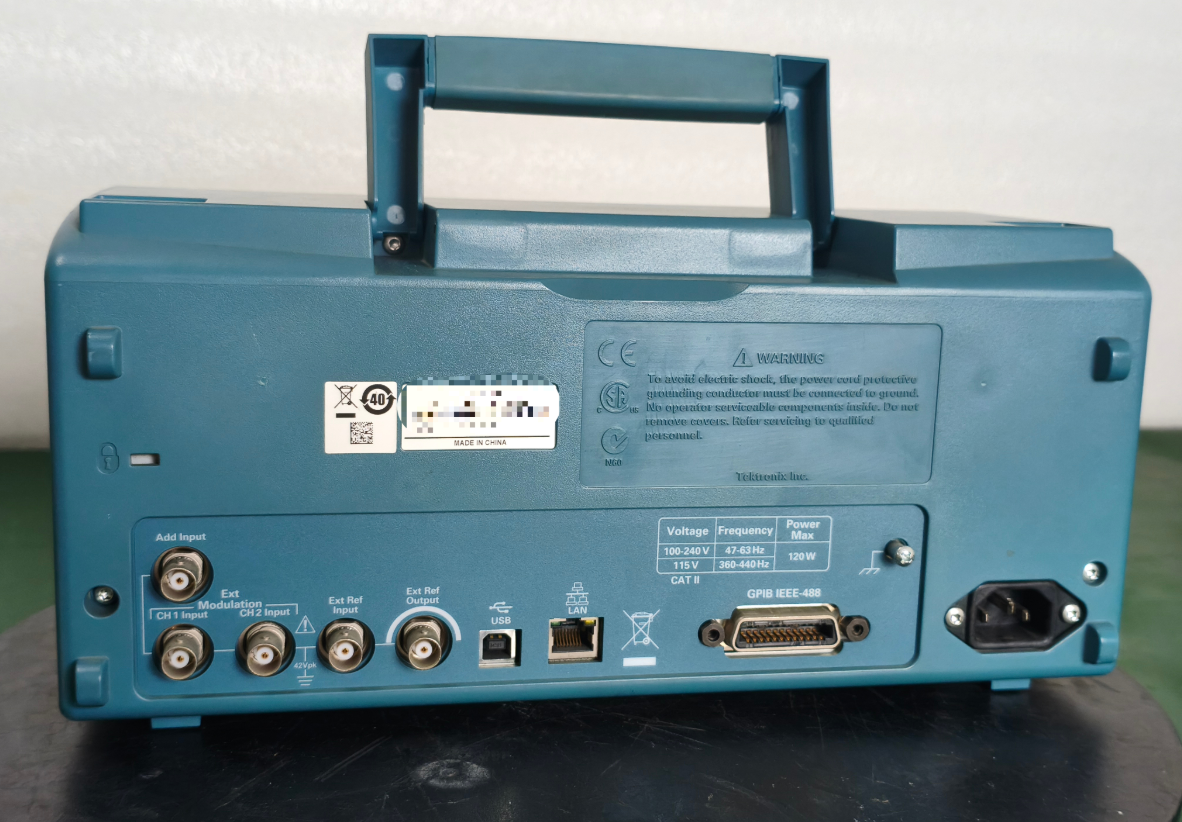

The AFG3102 is a 100 MHz, 2-channel arbitrary/function generator from the AFG3000 series. It is designed to offer high performance and versatility for a wide range of signal generation needs. Key Features & Specifications: CategorySpecificationChannels 2 Bandwidth (Sine) 100 MHz Other Waveforms Square/Pulse/Arbitrary up to 50 MHz Sample Rate Up to 1 GS/s Vertical Resolution 14 bits Waveform Memory 4 x 128K points Amplitude Up to 10 Vp-p into 50Ω loads Standard Waveforms Sine, Square, Pulse, Ramp, Triangle, Sin(x)/x, Exponential Rise/Decay, Gaussian, Lorentz, Haversine, DC, Noise Pulse Features Variable edge times Modulation AM, FM, PM, FSK, PWM Other Modes Sweep and Burst Display 5.6-inch display Interfaces & Additional Features: Front Panel: USB connector for easy waveform storage on a memory device. Rear Panel: USB, GPIB, and LAN interfaces. Intuitive Operation: Multi-language and intuitive operation saves set-up time. Note: This product is part of the AFG3000 series and may be discontinued ("No Longer Manufactured"). The newer model is the AFG3102C.
