oscilloscope

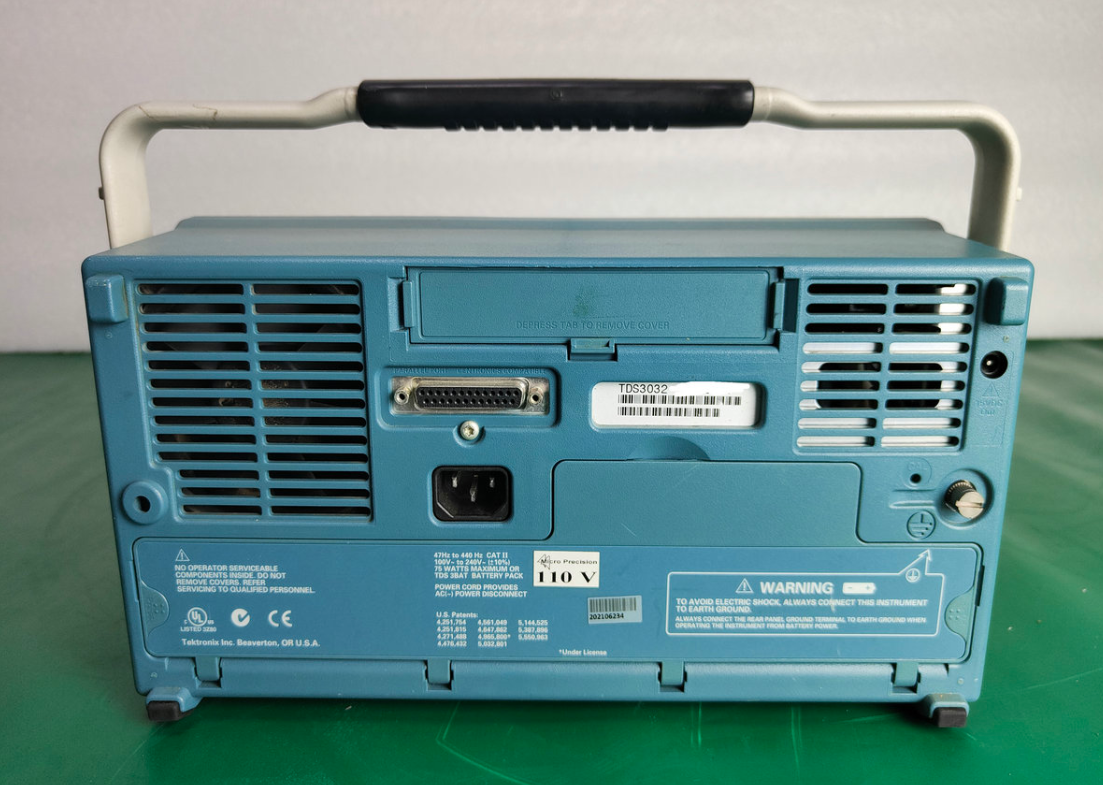

The TDS3032 is a 300 MHz, 2-channel digital phosphor oscilloscope from the TDS3000 series. It provides advanced waveform capture, display, and measurement capabilities. The DPO technology delivers three dimensions of signal information (amplitude, time, and distribution of amplitude over time) in real-time. Key Features & Specifications: CategorySpecificationChannels 2 Bandwidth 300 MHz Sample Rate 2.5 GS/s on each channel Record Length 10 kpts Rise Time 1.2 ns Vertical Resolution 9-bit Display Full VGA Color LCD Automatic Measurements 21 FFT Standard Triggers Advanced triggers, such as Glitch, Width, and Logic Interfaces & Additional Features: Storage: Built-in floppy disk drive; Front-panel USB host port (on 'C' models). Ports: Centronics port standard for quick hardcopies; Optional modules for RS-232, GPIB, LAN, or VGA communication ports. Probe Support: Supports active, differential, and current probes with automatic scaling and units. Application Modules: Optional modules for Telecommunications Mask Testing (TMT) and Extended Video applications. User Interface: Multi-language and QuickMenu mode for quick, easy operation. Note: This product is part of the TDS3000 series. The newer model is the TDS3032C.
