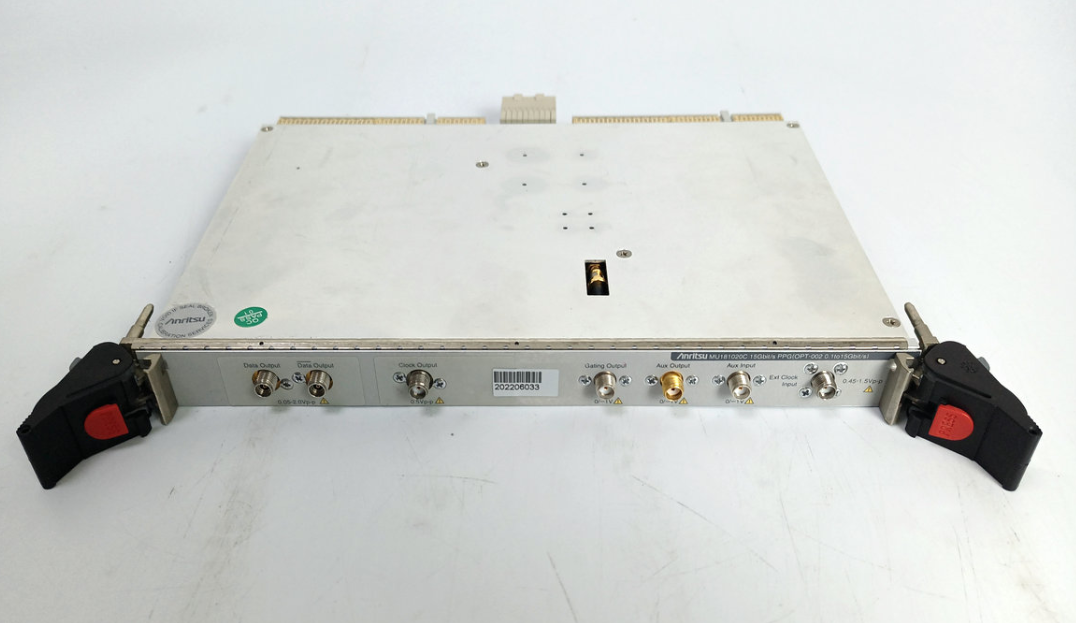

transmitter module

General Features Modular Design: A plug-in module for the Anritsu Signal Quality Analyzer mainframe. High Data Rates: Supports pattern generation at speeds up to 12.5 Gbit/s. Pattern Support: Capable of generating a wide variety of patterns for comprehensive testing, including PRBS (Pseudo-Random Binary Sequence), DATA, and Zero-Substitution patterns. Detailed Specifications (Typical for MU181020A/B Series) Operating Frequency Range: 0.1 to 12.5 GHz. Output Amplitude (with option): Variable from 0.5 to 3.5 Vp-p, adjustable in 2 mV steps. Cross Point Adjustment: The signal crossing point is adjustable, typically from 20% to 80% (or up to 90%), in steps as fine as 1% or 0.1%. Signal Quality: Features typical total jitter of 8 ps p-p and rise/fall times of approximately 20 to 25 ps. Output Control: Offers independent, variable output amplitude and offset control. Termination Flexibility: Output termination can be switched between AC and DC coupling, with selectable DC levels (e.g., GND, -2V, +1.3V, +3.3V)
