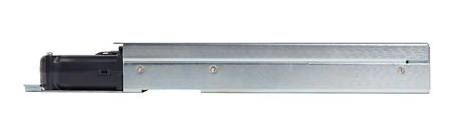

83496A Optical / Electrical clock recovery module

The 83496A multi-rate electrical Clock Recovery (CR) module performs clock extraction for waveform analysis with continuous, unbanded tuning from 50 Mb/s to 13.5 Gb/s, ultra-low residual jitter and Golden Phase Locked Loop (PLL) operation. Features： Inputs & outputs: 9/125 µm (single-mode) to 62.5/125 µm (multimode) Wavelength range: 1250-1650 nm (single-mode), 750-1330 nm (multimode) Minimum optical modulation amplitude: -11 dBm (1310/1550 single-mode), -10 dBm (1310 multimode), -8 dBm (850 multimode)
